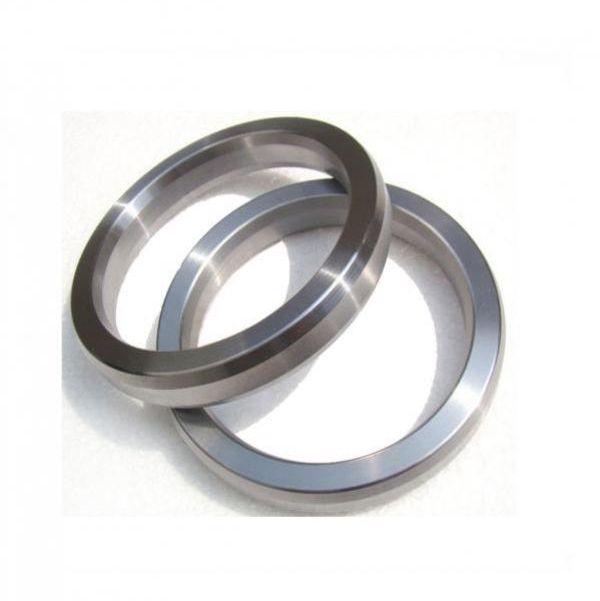

️Smith BX 159-S 316L Ring Type Joint Gasket:

The Smith BX 159-S 316L RTJ Gasket is a high-performance BX Style Ring Type Joint Gasket designed for sealing high-pressure flange connections in oil, gas, and petrochemical industries. Made from 316L stainless steel, it offers exceptional resistance to corrosion, extreme temperatures, and mechanical stress

Technical Specifications:

Model: Smith BX 159-S

Type: BX Style RTJ Gasket

Size: 4-1 inch

Material: Stainless Steel 316L

Standards: API 6A / ASME B16.20

Production Date: 07/15

Batch Codes: DF 0416 – GA 0435

Pressure Rating: Up to 20,000 PSI

Temperature Range: Up to 800°C

Applications: Oil & gas pipelines, drilling rigs, refineries, petrochemical plants

Key Features:

Pressure-energized seal: Designed to create a metal-to-metal seal that strengthens under pressure

Pressure balance hole: Ensures equalization of trapped pressure inside flange grooves

316L stainless steel: Offers excellent corrosion resistance, especially in chloride-rich environments

Precision-machined: Tight dimensional tolerances for reliable sealing and face-to-face flange contact

Made In USA
