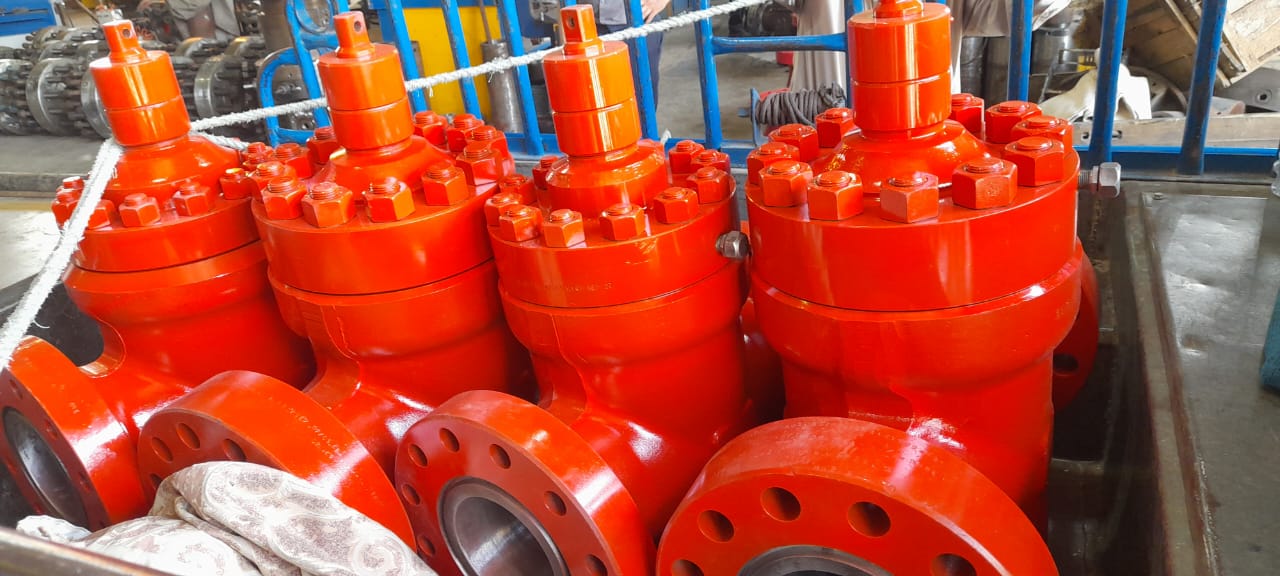

GATE VALVE 7 1/16″- 3000-5000 psi-CAMERON

gate valve 7-1/16 inch  rated at 3000 PSI-5000 psi is engineered for demanding oilfield applications

Gate valves are among the most essential flow‑control components used in oil wells. They serve as reliable isolation devices within the wellhead and flowline systems, allowing operators to completely open or completely shut off the flow of produced fluids. Because of their robust design and ability to withstand high pressures, gate valves play a critical role in maintaining safety and operational integrity in oilfield environments

In wellhead assemblies, a gate valve is typically installed to isolate the well during maintenance operations such as workovers, acidizing, cementing, or equipment replacement. When fully opened, the valve provides a straight, unobstructed flow path with minimal pressure drop, which is especially important when running downhole tools like wireline or logging equipment

Gate valves are designed to operate in harsh conditions involving high pressure, corrosive fluids, and abrasive particles. Their sealing mechanism allows for tight shutoff, making them a dependable barrier during emergency situations, including unexpected pressure surges or potential blowouts

Although they are highly effective for on/off service, gate valves are not intended for throttling or regulating flow. Their opening and closing process is relatively slow, and prolonged operation in partially open positions can lead to wear or damage. Despite these limitations, their durability, strong sealing capability, and low pressure loss make them a preferred choice in oil and gas production systems

Features:

 Connection Type: Flanged (FH)

 Size: 7 1/16 inch

 Operation: Manual

 Pressure Rating: 3000 psi-5000 PSI

 Standard: API 6A Monogrammed

 Body Material: Forged or Cast Steel (depending on model)

 Bi-directional sealing capability

 Gate Type: Slab or Expanding Gate

 Suitable for H2S environments per NACE MR0175

 Working Temperature Range: -60°C to +121°C

Applications:

.Oil and gas wellheads

Christmas tree assemblies

Pressure and flow control systems

MADE IN USA

AVAILABLE IN IRAN
